96L(24Lx4)
Careddi Supercritical CO2 Fluid Extraction Machine
Scale: Medium Size
Model: 96L (24Lx4)

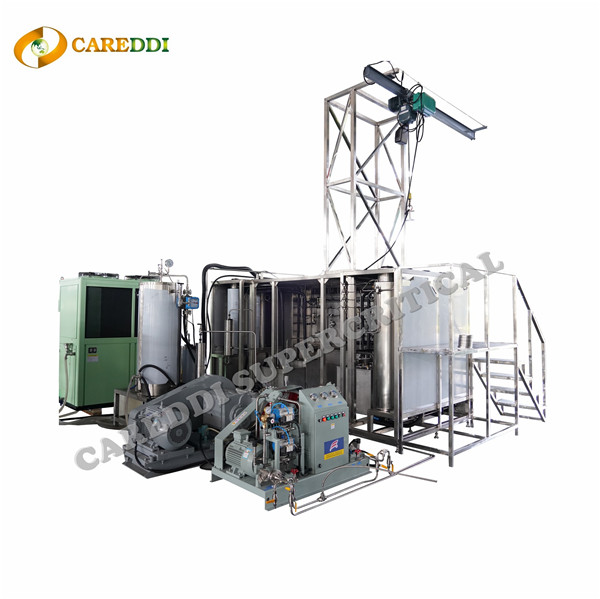

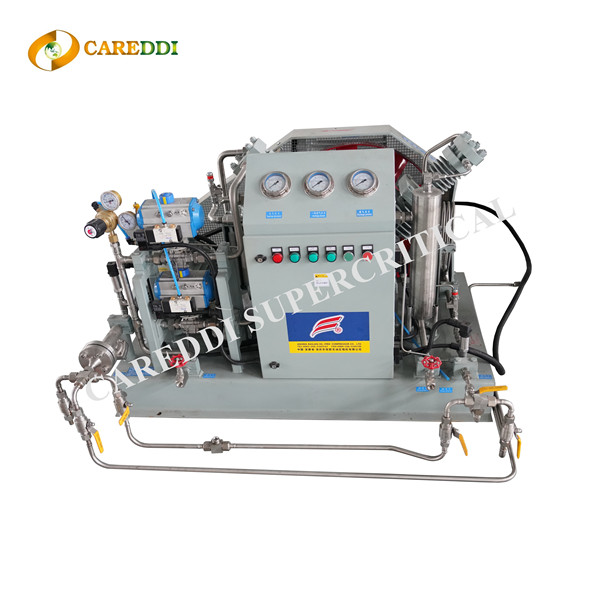

Detailed pictures of machine
Main Part list of Model 96L(24Lx4) Supercritical co2 extraction machine
Main Part List of 96L(24Lx4) Supercritical CO2 Extraction | |||
Part Description | Qty(set) | Made Material | |
1 | Extraction Vessel | 4 | #304 Stainless steel |
2 | Material Cylinder | 5 | #304 Stainless steel |
3 | Separation Vessel | 2 | #304 Stainless steel |
4 | Pump | 3 | |
5 | Cooling System | 1 | |
6 | Heating Exchange System | 6 | #304 Stainless steel |
7 | Purification System | 1 | #304 Stainless steel |
8 | CO2 Storage Tank | 1 | #304 Stainless steel |
9 | Flow rate Meter | 1 | |
10 | Temperature Control System | 4 | |
11 | Safety valves | 7 | |
12 | Over-pressure gauge | 1 | |
13 | Control panel | 1 | #304 Stainless steel |
14 | Main machine frame and operation desk | 1 | #304 Stainless steel |
15 | Operation plat form | 1 | Carbon steel |
16 | Hoist | 1 |
Main Technical Parameters of Supercritical co2 extraction machine 96L(24Lx4)
MAIN TECHNICAL INDEX | ||
Extraction tank | Material | Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material. |
Volume | 24LX4 | |
Working pressure | 35MPa | |
Separation tank | Material | Equipped with jacket water circling heating system, temperature adjustable |
Volume | 1X27L and 1X17L | |
Max working pressure | 20MPa | |
CO2 high pressure pump | Flow Rate (Triple plunger) | 600L/H (Frequency adjustable) |
Max working Pressure | 40MPa, pumps head with cooling system | |
Solvent pump | Flow Rate | 4L/H (Frequecy adjustable) |
Max working Pressure | 20MPa | |
Cooling system | Cooling Capacity | 45KW (air cooling) |
Temperature range | -5℃~+5℃ (meet process requirement) | |
Heat exchange system | Type: Φ14/40Mpa, Φ18/30Mpa With circulating water jacket heating system, adjustable temperature | |
Purification system | Volume | 5L |
Max working Pressure | 16MPa | |
CO2 storage tank | Volume | 30Lx2 |
Max working Pressure | 8MPa | |
Level meter | Model | 1200/16MPa |
Digital indicator | indicate both instant flow rate and accumulation | |
Temperature control system | Temperature Range | Room temperature~85℃ adjustable |
Accuracy | ±1℃ | |
Safety devices and other components | Pressure gauge at high pressure pump outlet, overpressure protection. | |
Safety valve at extraction tank, separation tank, distillation column, Overpressure automatic relief. | ||
Pipe lines | Valves, fittings: DW6 All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel. | |
Total power | 3 Phase, 58Kw |
Customer self-provided Items
3 Phase Electricity Power: 58KW
Installation dimension: 7800×7000×4200mm , plus operation space.
CO2 gas: Food grade≥99.5%, single bottle net weight ≥22Kg
Food grade alcohol ≥99.5%
Advantages of CAREDDI Supercritical co2 extraction system
★ Unique highly integrated system, small size occupied but high capacity output.
★ 99% of the system assembled before shipping, easily installation at customer site.
★ Max working pressure 50Mpa(500 Bar, 7250psi).
★ Pressure and temperature can be easily adjusted and controlled precisely.
★ Friendly CO2 flow route design with self-explanatory flow chart for easy training and easy operation.
★ Special design on the pressure-balance, can save CO2 maximum limit.
★ High efficiency CO2 high pressure pump, can increase the pressure in shortest time.
★ Special design inside the pump piston system, to let the pump has very long life time with few maintenance requirements.
★ High quality Back-pressure regulator.
★ Double safety protection, over pressure protection gauge and safety valves.
★ Low extraction temperature which is suitable for extraction and purification of heat sensitive compound.
★ Fast extraction speed, completely extracted, no toxicity, non-flammable, safe application an non-pollution upon environment.
★ Being capable to provide inert environment to avoid oxidation of the products and affection of effective content of extracts.
★ No residue of solvent, no nitrate and ions of heavy metal.
Aftersales service
We will provide a complete after-sales service, overseas installation, commissioning and training.
Also three years free spare parts, video training,etc.
Widely Application of Supercritical CO2 Fluid Extraction Equipment
Range of Application | Type of Application |
Pharmaceutical Industry | Extraction of effective contents of Chinese herbs, concentration, refinement and precipitation of raw material drug, separation and refinement of fatty mixtures. Such as: cannabis CBD oil, hops, chili color , frankincense oil, vanilla oil, mint oil, nutmeg oil, agarwood oil, seabuckthorn seeds oil, cinnamon, coconut oil, coffee beans, etc. |
Foodstuff | Extraction of hops, caffeine removal from coffee berry, extraction of plant |
Cosmetics and Perfumery Industry | Separation and refinement of natural and synthetic perfumeries, dealkalization of tobacco, extraction of raw material cosmetics. |
Chemical Industry | Separation of hydrocarbon, refinement of organic synthetic raw material, separation of azeotrope, retrieval of raw materials of reaction, dehydration of water soluble powder of organic solution, water oxidation. |
Others | Superconducting, semiconductor, ceramics, oil washing of petroleum core, enzyme catalytic reaction, preparation of materials, superfine granules, extraction of complex compound, supercritical dyeing technique, supercritical reaction, supercritical coating technique (pharmacy-making). |
