6L(5L+1L)
CAREDDI
Careddi Supercritical CO2 Fluid Extraction Machine
Scale: Pilot Lab Series
Model: 6L (5L+1L)
This is 6 Liter supercritical co2 extraction machine.
Which with two extraction vessels and two separation vessels.
One extraction vessel is 5 Liter, another extraction vessel is 1Liter.
This 6L supercritical co2 extraction machine is very good for laboratory use.

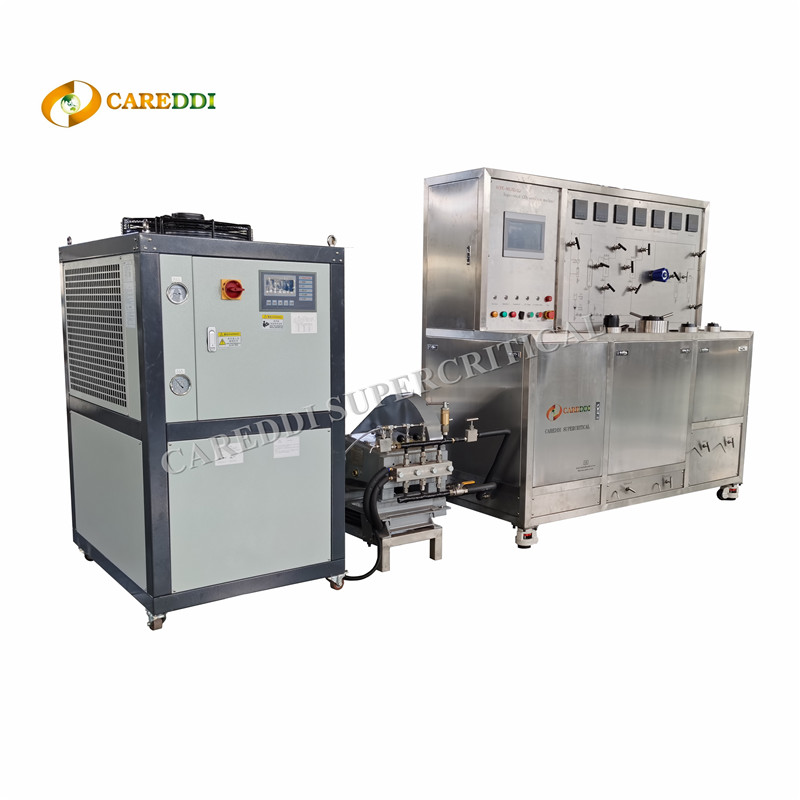

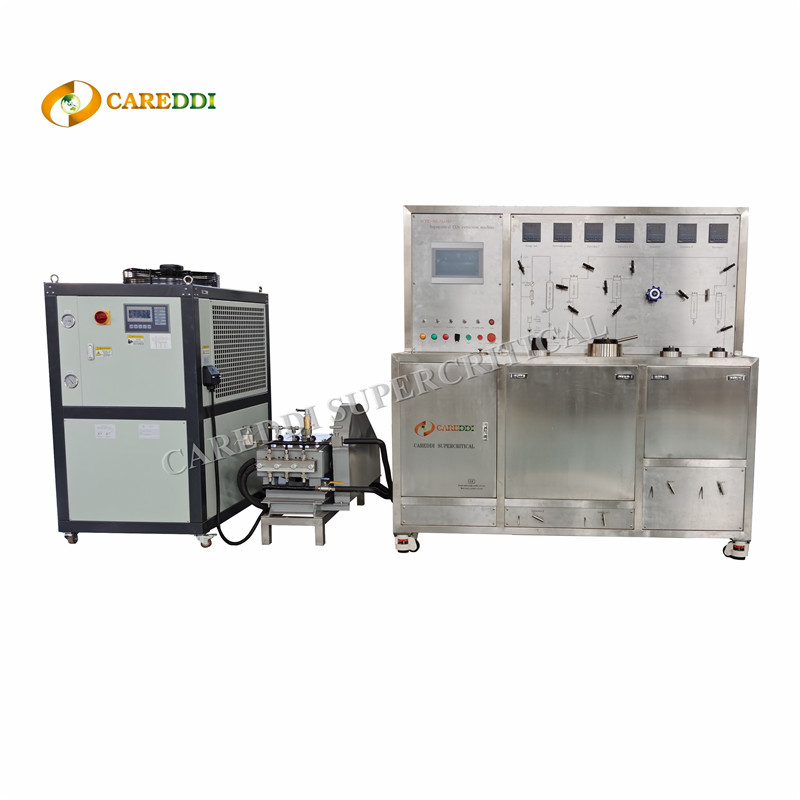

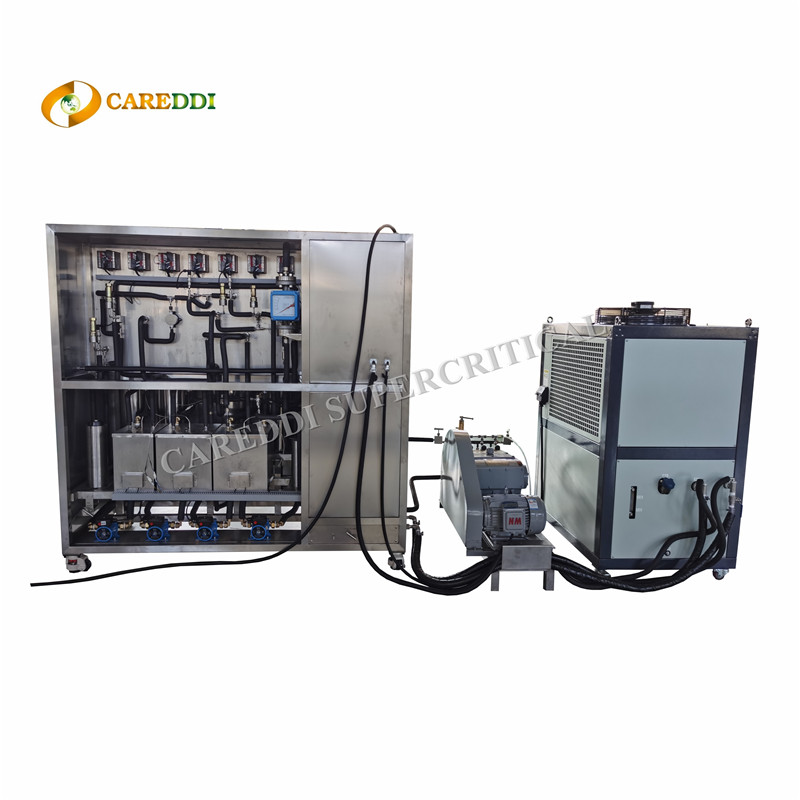

Detailed pictures of machine
Main Part list of Model (5+1)L Supercritical co2 extraction machine
Main Part List of Model 6L(5L+1L) Supercritical CO2 Extraction Machine | |||
Part Description | Qty(set) | Made Material | |
1 | Extraction Vessel | 2 | #304 Stainless steel |
2 | Material Cylinder | 2 | #304 Stainless steel |
3 | Separation Vessel | 2 | #304 Stainless steel |
4 | Pump | 2 | |
5 | Cooling System | 1 | |
6 | Heating Exchange System | 3 | #304 Stainless steel |
7 | Purification System | 1 | #304 Stainless steel |
8 | CO2 Storage Tank | 1 | #304 Stainless steel |
9 | Flow rate Meter | 1 | |
10 | Temperature Control System | 4 | |
11 | Safety valves | 5 | |
12 | Over-pressure gauge | 1 | |
13 | Control panel | 1 | #304 Stainless steel |
14 | Main machine frame and operation desk | 1 | #304 Stainless steel |
Main Technical Parameters
1. EXTRACTION TANK
Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material.
Volume 5L + 1L
Max working Pressure 45MPa
2. SEPARATION TANK
Equipped with jacket water circling heating system, temperature adjustable.
Volume 2.5L+1L
Max working Pressure 20MPa
3. CO2 HIGH-PRESSURE PUMP
Flow Rate(Triple plunger) 50L/H
Max working Pressure 50MPa, pumps head with cooling system
4. SOLVENT PUMP
Flow Rate: 0.25-4L/H
Max working Pressure 50MPa (Mechanical adjustable)
5. COOLING SYSTEM
Cooling Capacity 5100Kcal/h (air cooling)
Temperature range -5℃～+5℃ (meet process requirement)
6. HEATING EXCHANGE SYSTEM
Type: Φ6/50Mpa
With circulating water jacket heating system, adjustable temperature
7. PURIFICATION SYSTEM
Volume: 1L
Max working Pressure 50MPa
8. CO2 STORAGE TANK
Volume: 9L
Max working Pressure 16MPa
9. FLOW METER
Metal tube float flow meter 0-60L/H (Digital indication)
10. TEMPERATURE CONTROL SYSTEM
Temperature Range: Room temperature~85℃ adjustable
Accuracy: ±1℃
11. SAFETY DEVICES AND OTHER COMPONETNS
Pressure gauge at high pressure pump outlet, overpressure protection.
Safety valve at extraction tank, separation tank, distillation column, Overpressure automatic relief.
12. PIPE LINES
Valves, fittings: DW6，
All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel
13. TOTAL POWER : 3 Phase, 14Kw
Customer self-provided Items
3 Phase Electricity Power： 14KW
Installation dimension:2700×2500×2300mm, plus operation space.
CO2 gas: Food grade≥99.5%, single bottle net weight ≥22Kg
Food grade alcohol ≥99.5%
Advantages of CAREDDI Supercritical co2 extraction system
★ Unique highly integrated system, small size occupied but high capacity output.
★ 99% of the system assembled before shipping, easily installation at customer site.
★ Max working pressure 50MPa(500 Bar, 7250psi).
★ Pressure and temperature can be easily adjusted and controlled precisely.
★ Friendly CO2 flow route design with self-explanatory flow chart for easy training and easy operation.
★ Special design on the pressure-balance, can save CO2 maximum limit.
★ High efficiency CO2 high pressure pump, can increase the pressure in shortest time.
★ Special design inside the pump piston system, to let the pump has very long life time with few maintenance requirements.
★ High quality Back-pressure regulator.
★ Double safety protection, over pressure protection gauge and safety valves.
★ Low extraction temperature which is suitable for extraction and purification of heat sensitive compound.
★ Fast extraction speed, completely extracted, no toxicity, non-flammable, safe application an non-pollution upon environment.
★ Being capable to provide inert environment to avoid oxidation of the products and affection of effective content of extracts.
★ No residue of solvent, no nitrate and ions of heavy metal.
Aftersales service
We will provide a complete after-sales service, overseas installation, commissioning and training.
Also three years free spare parts, video training,etc.
